FarrashopNut Diameter Chart

Printable Fastener Lookup Sheet

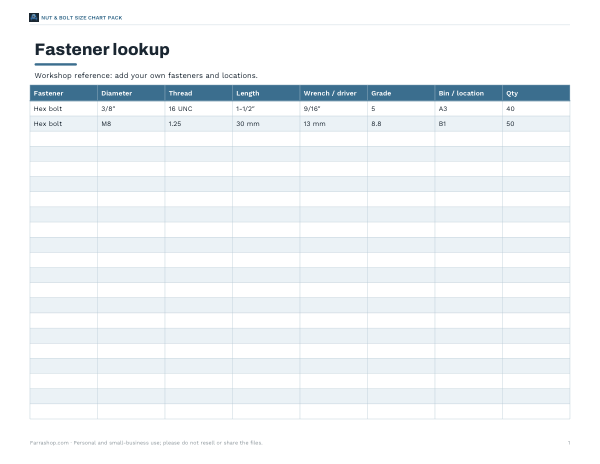

This two-page Letter landscape fastener lookup sheet is for workshops, garages, and parts rooms that need a simple place to track fasteners. It includes columns for Fastener, Diameter, Thread, Length, Wrench / driver, Grade, Bin / location, and Qty. The example rows show common entries like Hex bolt, 3/8″, 16 UNC, 1-1/2″, 9/16″, 5, A3, 40 and M8, 1.25, 30 mm, 13 mm, 8.8, B1, 50.

Preview of Printable Fastener Lookup Sheet

Free printable · PDF

  • 2 pages
  • US Letter, landscape — choose “Fit to page” for A4
  • PDF, 60 KB
Download free PDF

Free for personal, family and classroom use.

Need to edit it? The full pack has the editable Excel file plus all 5 sheets — $5.00, one-time.

Use it to build your own reference for stocked hardware and keep the sheet near your bins, shelves, or toolbox. Add each fastener type, size, and storage location as you sort parts, then update quantities as inventory changes.

Good for

Tip: Print landscape and keep one sheet per bin cabinet or fastener drawer.

5 files · PDF, XLSX

Get every sheet: Nut & Bolt Size Chart Pack

This sheet plus 4 more in one download, with the editable Excel files. Printable inch and metric hex nut charts (wrench size, thickness, threads), an actual-size bolt diameter gauge, a bolt grade marking chart and an Excel fastener lookup.

$5.00 USD, one-time 5 files · about $1.00 each

7-day money-back guarantee. Full refund within 7 days of purchase, even after you download.

More free printables

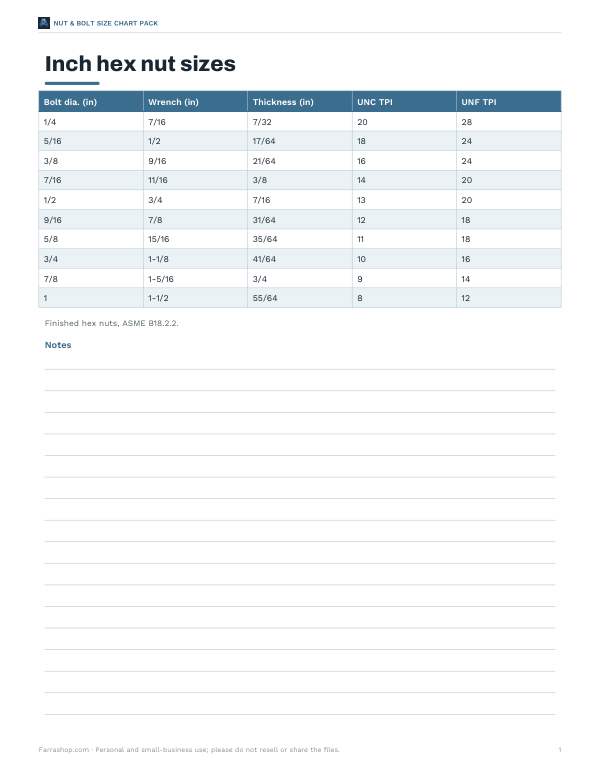

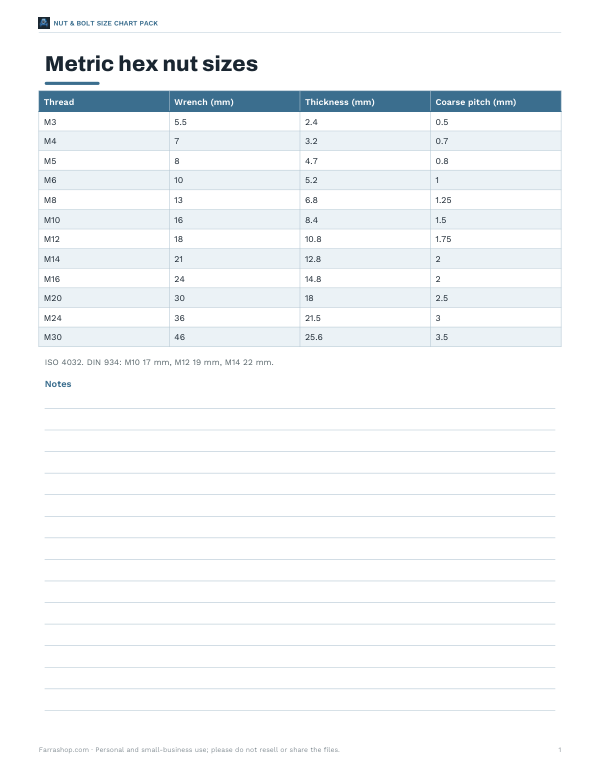

Preview of Printable Inch Nut Diameter ChartPrintable Inch Nut Diameter Chart1 page · free PDFPreview of Printable Metric Nut Size ChartPrintable Metric Nut Size Chart1-page metric nut chart with thread, wrench size, thickness, and coarse pitch for common hex nuts in a clean PDF and XLSX format.1 page · free PDFPreview of Printable Bolt Diameter GaugePrintable Bolt Diameter Gauge1-page actual-size bolt diameter gauge with coin drawings. Print at 100% to compare bolt sizes against the printed circles.1 page · free PDFPreview of Printable Grade ChartPrintable Grade ChartFree printable grade chart with bolt marking, grade, and use columns for SAE Grade 2, 5, and 8. One Letter PDF page.1 page · free PDF
